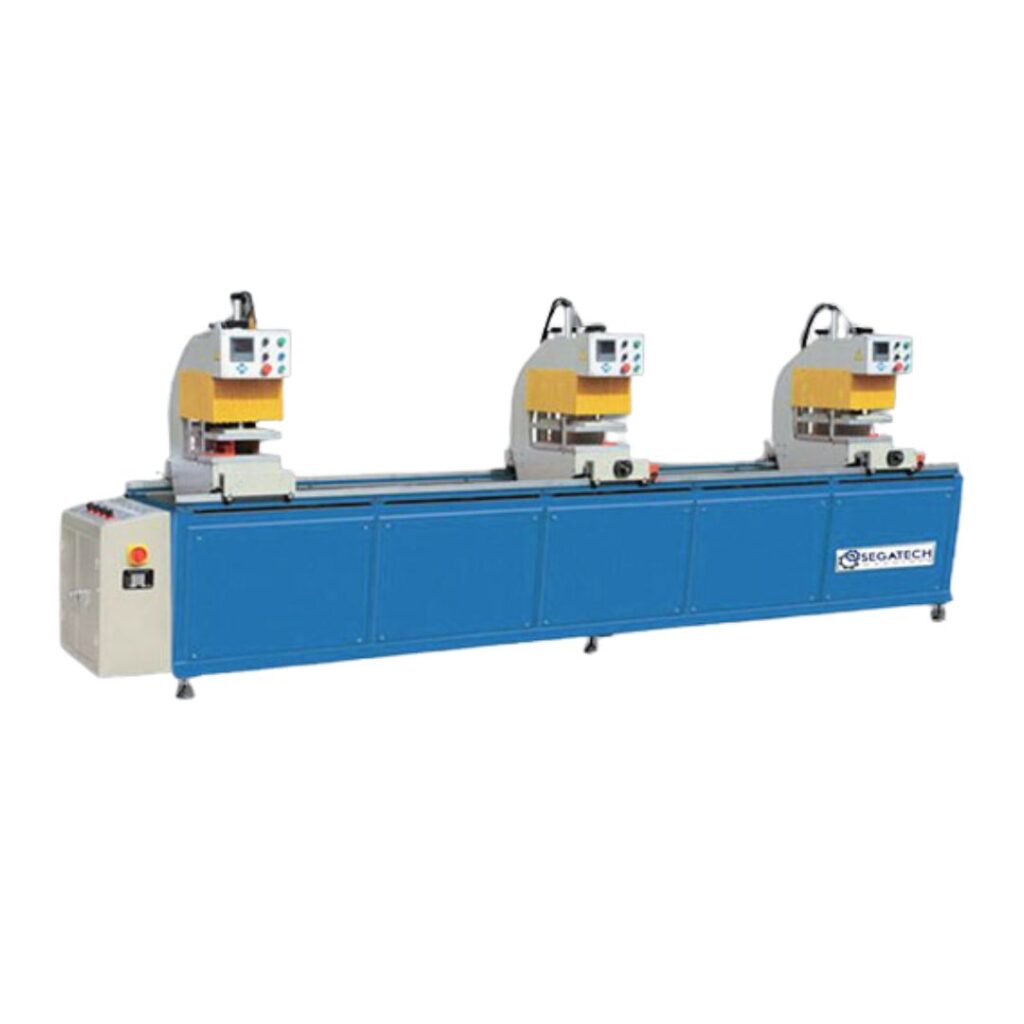

Three Head Welding Machine

Features of

  • Used for aluminum, plastic profiles of the -45 degrees, 90 degrees, 45 degrees angle cutting.
  • Imported carbides blade is of accurate processing and high endurance.
  • The two heads can work alone, can also work at the same time.
  • To cut out the section of desired length and two end angles.
  • Right head adopts motor drive
  • the movement of the tool carriage using precision linear bearing motion pair, ensures the high accuracy of repeated positioning.

Technical Parameters

Power Voltage220 V
Frequency50 Hz
Input Power2.5 KW
Welding Profile Height20 -100 mm
Welding Profile Width0-120 mm
Overall Dimension4400 X 950 X 1700 mm
Weight1300 kg
Air Pressure0.5- 0.8 M Pa
Air Consumption100 L / min
Welding Range400 mm-3500 mm
