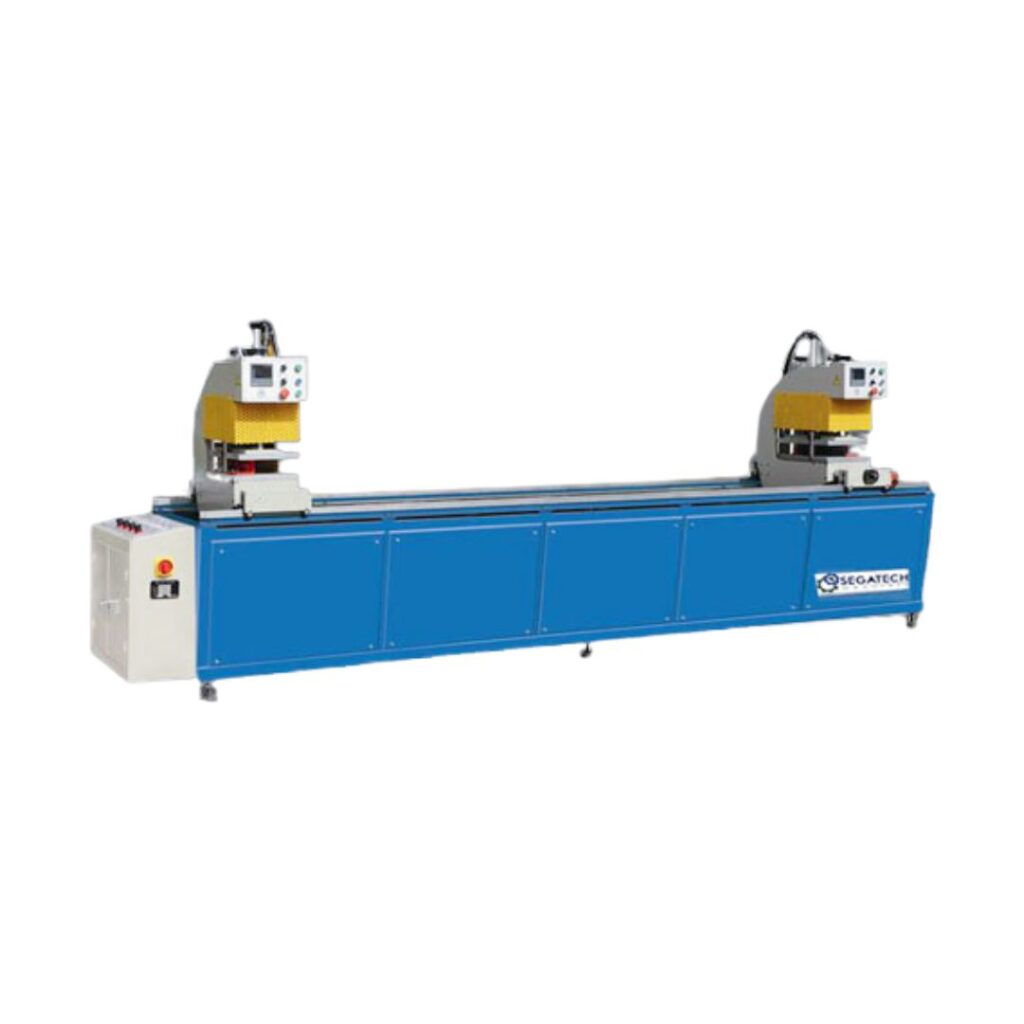

Double Head Welding Machine
Features of
- The window machine is used for PVC door-window welding.
- PLC controls the welding action program, high reliability.
- Machine heads can work separately or jointly.
- Free angle welding of right machine head.
- Parameters can be set to meet various profiles’ processing requirements.
- High welding precision.
- Imported PLC and other main electric components.
- One of the heads can weld various angles, which can meet the customers need of welding an arc and other special-shaped windows. Good welding corner appearance.
- Widely window type application as follows.
- Optional model: SHJ03–120,SHJ04–120 for different machinery head. Owning different machinery welding capacity.
Technical Parameters
| Power voltage | 220V |
| Frequency | 50 Hz |
| Input Power | 2.5 KW |
| Welding Profile Height | 20 -100 mm |
| Welding Profile Width | 0-120 mm |
| Overall Dimension | 4400 X 950 X 1700 mm |
| Weight | 1300 kg |
| Air Pressure | 0.5- 0.8 M Pa |
| Welding Range | 400 mm-3500 mm |
| Model Number | DWM - 120 M |
| Air Consumption | 100 L / min |
