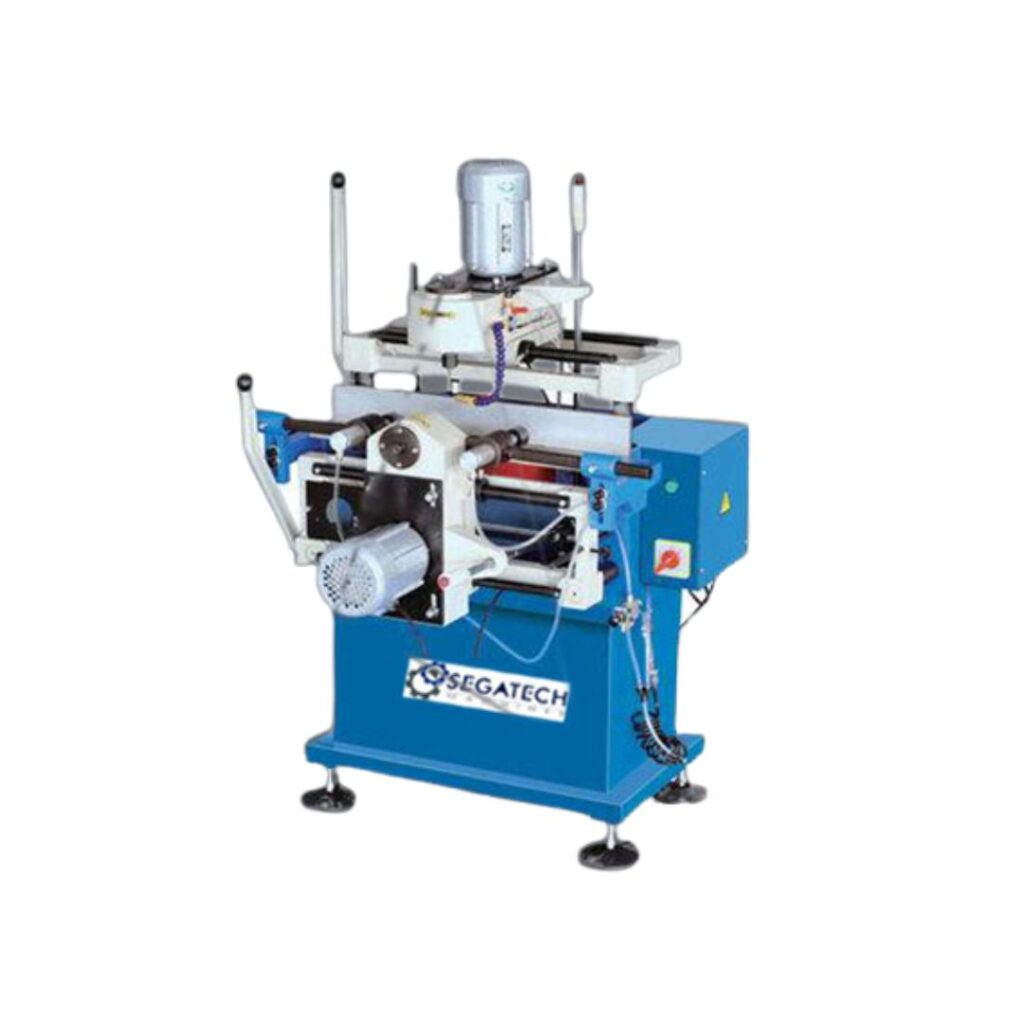

Double Axis Copy Router Machine
Features of
- Used for processing all kinds of holes of the aluminum and PVC profiles.
- Vertical and horizontal direction can be adjusted .
- Changeable template for different copy routing.
- It has features of compact structures and small volume, the air pressure drives the clamping.
Technical Parameters
| Power Supply | 380V |
| Frequency | 50 Hz |
| Input Power | 2 X 0.75 KW |
| Brand | Segatech |
| Model No | CRD - 150A |
| Weight | 280 Kg |
| Overall Dimension | 1000 X 1150 x 1600 mm |
| Air Pressure | 6-8 Bar |
| Copy routing Range | 290 X 100 mm |
