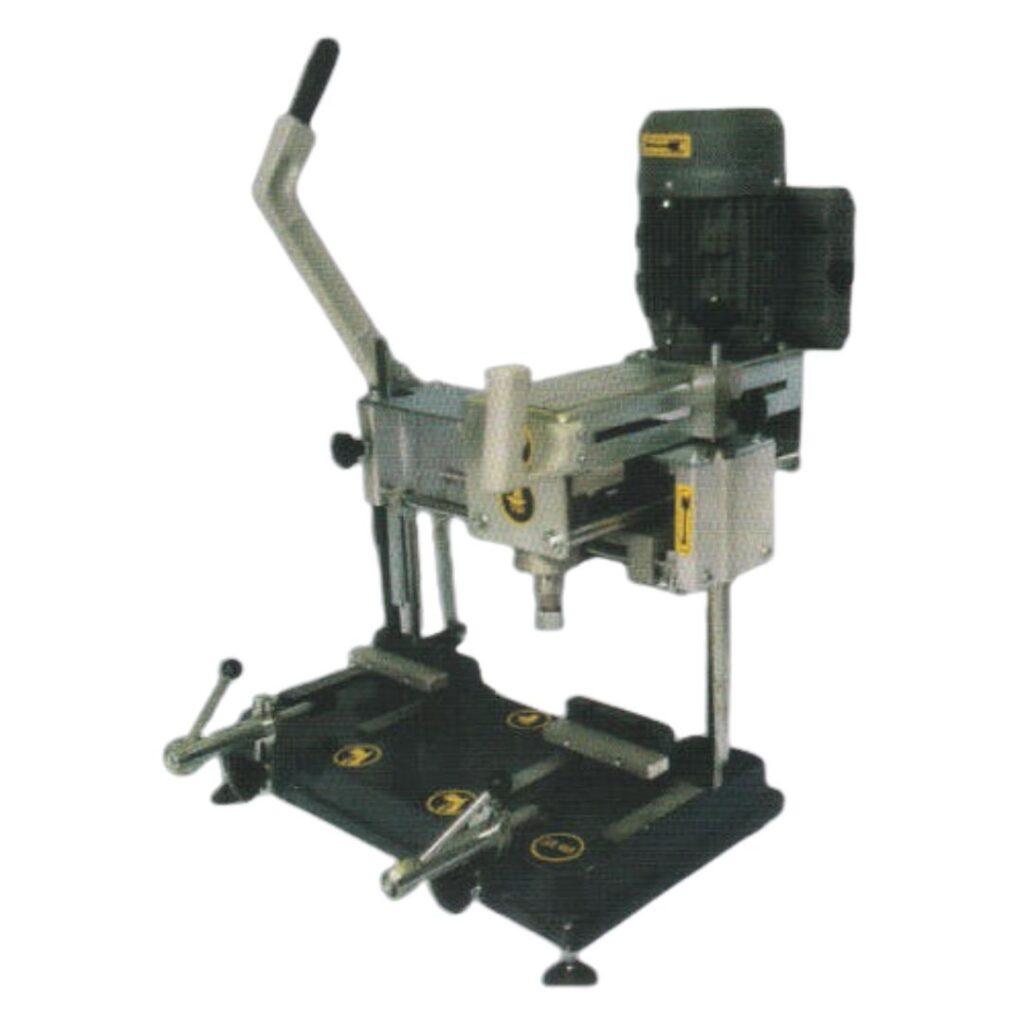

Copy-routing drilling machine
Features of
- Used for processing various kinds of holes of aluminum doors & windows, such as water slot, pulley hole, lock hole and groove of PVC and Aluminum profile.
- Horizontal milling head and vertical three-hole drill can process three holes on the lock and lock-position hole at one time.
- Special A-alloy milling cutter with long using life ensures high quality processing.
- By copying template and auxiliary positioning two copy methods.
- Using a foot switch control the pressing cylinder, safe and reliable.
- It has features of compact structure and small volume.
Technical Parameters
| Power Supply | 380V 50Hz |
| Input Power | 2.25KW |
| Air Pressure | 0.5-0.8MPa |
| Processing hole size error | ±0.2mm |
| Processing deviation from straightness | ±0.1mm |
| Diameter of the three-hole drilling head | ?12 |
| Centers distance of three-hole drilling head | 21.5*21.5mm |
| Milling cutter diameter | ?5, ?8 |
| Copy routing range | 290*100mm |
| Roughness of cutting surface Ra 12.5 µm | 12.5 µm |
| Over all dimension | 1000*1150*1600mm |
