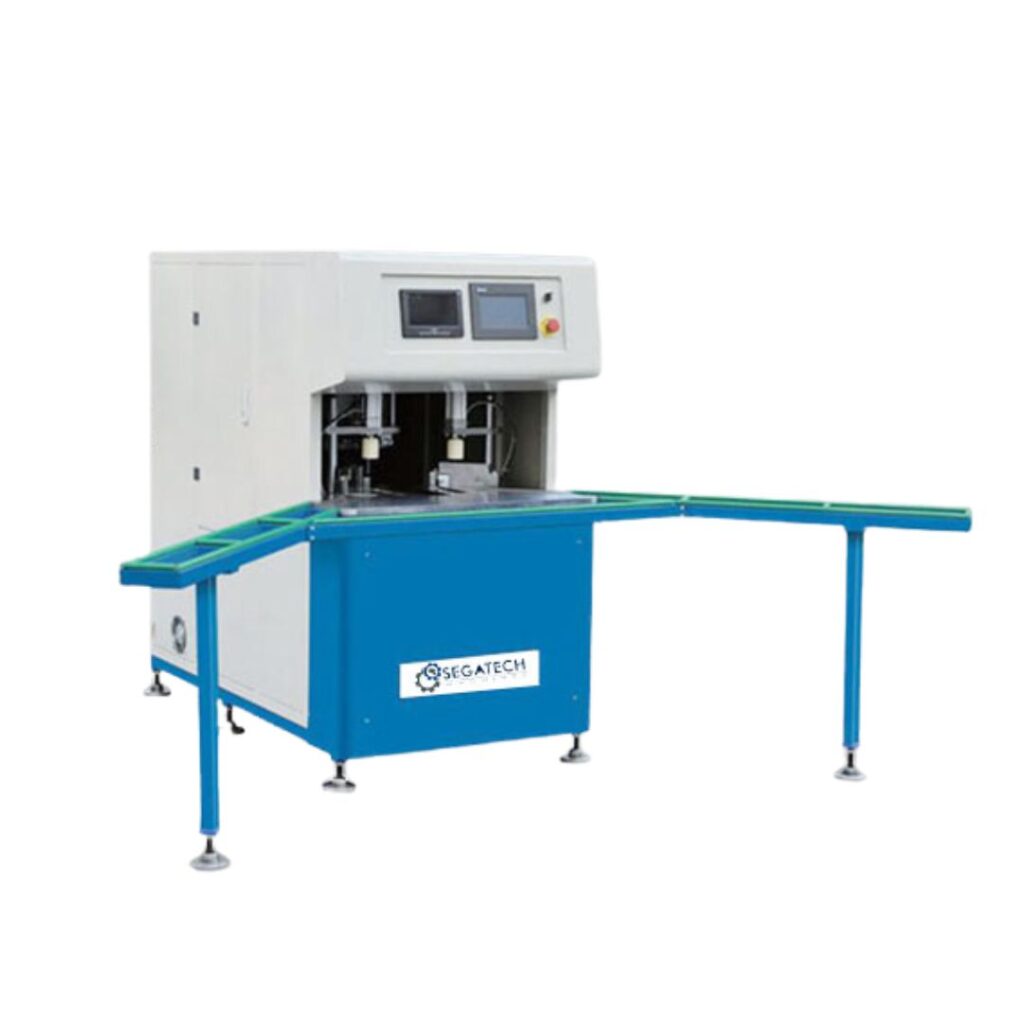

Automatic Corner Cleaning Machine

Main feature

  • This machine is used for corner cleaning 90° angle of plastic doors and windows.
  • It has the functions of digital control, pneumatic driving and mechanical technology.
  • With the imported digital control system, it can equip more than 100 processing procedures according to different profiles.
  • The rooting can cut outer corners and complete vertical surfaces cleaning ordered by the procedure
  • Top and bottom milling knives can mill the top and bottom surfaces.
  • Another two top and bottom milling cutters can clean seal grooves and left inner glass easily. And also, according to different conditions, dialing numbers and changing the procedure, it also can clean the welding line cased by no precise rule.
  • This machine has features of easy adjustment and high automation. It is an ideal equipment for large scale and continuous and various profiles.
  • We can say that 3 cutters cleaning the up,bottom and outer corner.
  • 5 cutters cleaning the up,bottom and outer corner, inner corner,and drilling holes for rubber gasket .

Technical Parameters

Input Power1.5Kw
Input Voltage380V 50Hz
Air Pressure0.4-0.7Mpa
Air Consumption80L/min
Main Milling Cutter Speed2800r/min
Comprehensive Angle Cleaning Time25’’
Processing profile height40~120mm
Processing profile width40~120mm
Overall Dimension930*690*1300mm
