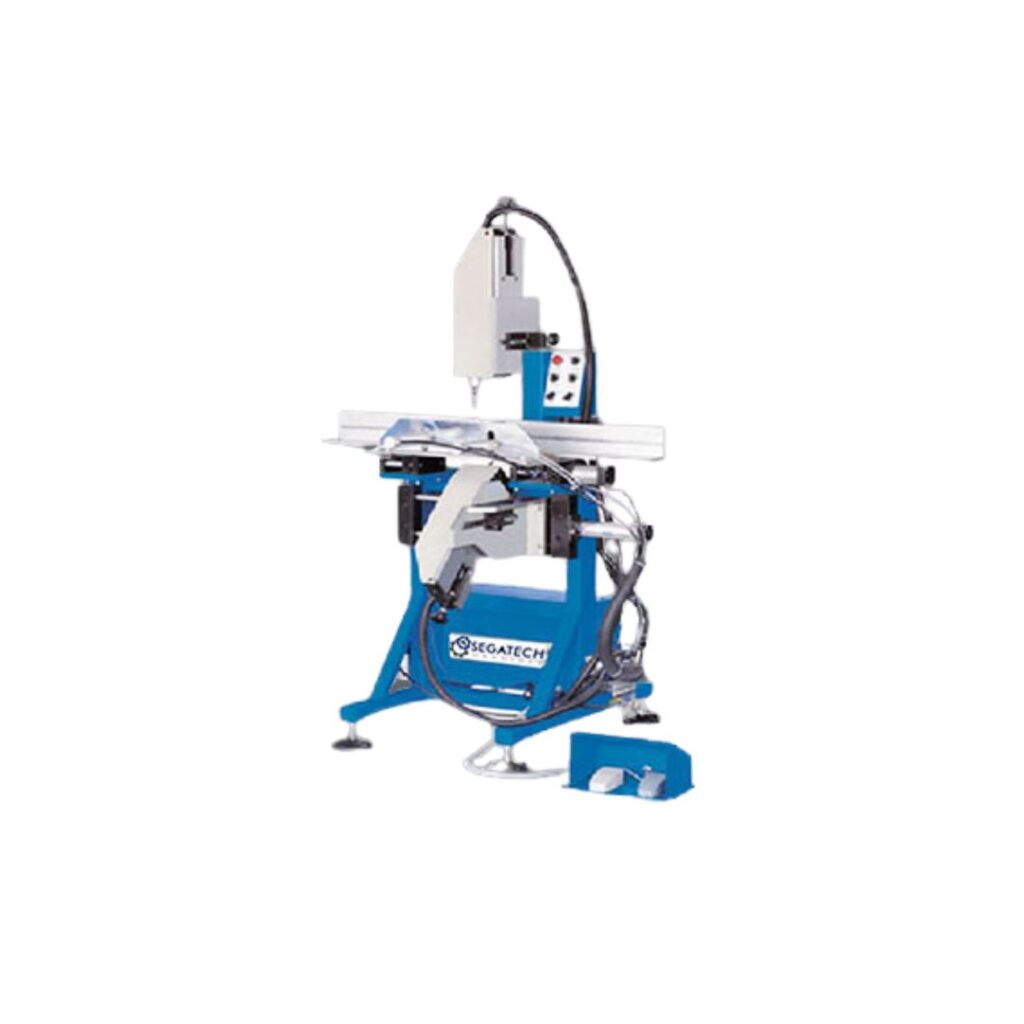

3 Axis Water Slot Machine)
Main feature
- Milling all kinds of water slots and air pressure blance groove.
- Full design with high rigidity, processing beautiful water slot, high appearance quality.
- Automatic cutter changer on the under head, one time clamp to finish water slots processing.
- High efficiency,suitable for mass production.
- Special feeling system, need no special maintenance, high milling quality.
- Easier adjustment for the cutter location to meet different kinds of profiles.
- Water slot milling length adjustable within 100mm, wide adaptability.
- Adopt linear bearing motion to ensure the processing predision. Automatic water slot milling machine.
Technical Parameters
| Working voltage | 220V |
| Air Consumption | 30 L / min |
| Total power | 0.38 KW X 3 |
| Air pressure | 0.5 - 0.8 M Pa |
| Slot Depth | 30 mm |
| Slot Length | 10 - 100 mm |
| Over All Dimension | 1200 X 1200 X 1800 mm |
| Weight | 200 kg |
| Speed | 25000 r/min |
| Frequency | 50 Hz |
| Model No. | DS - 3 E |
