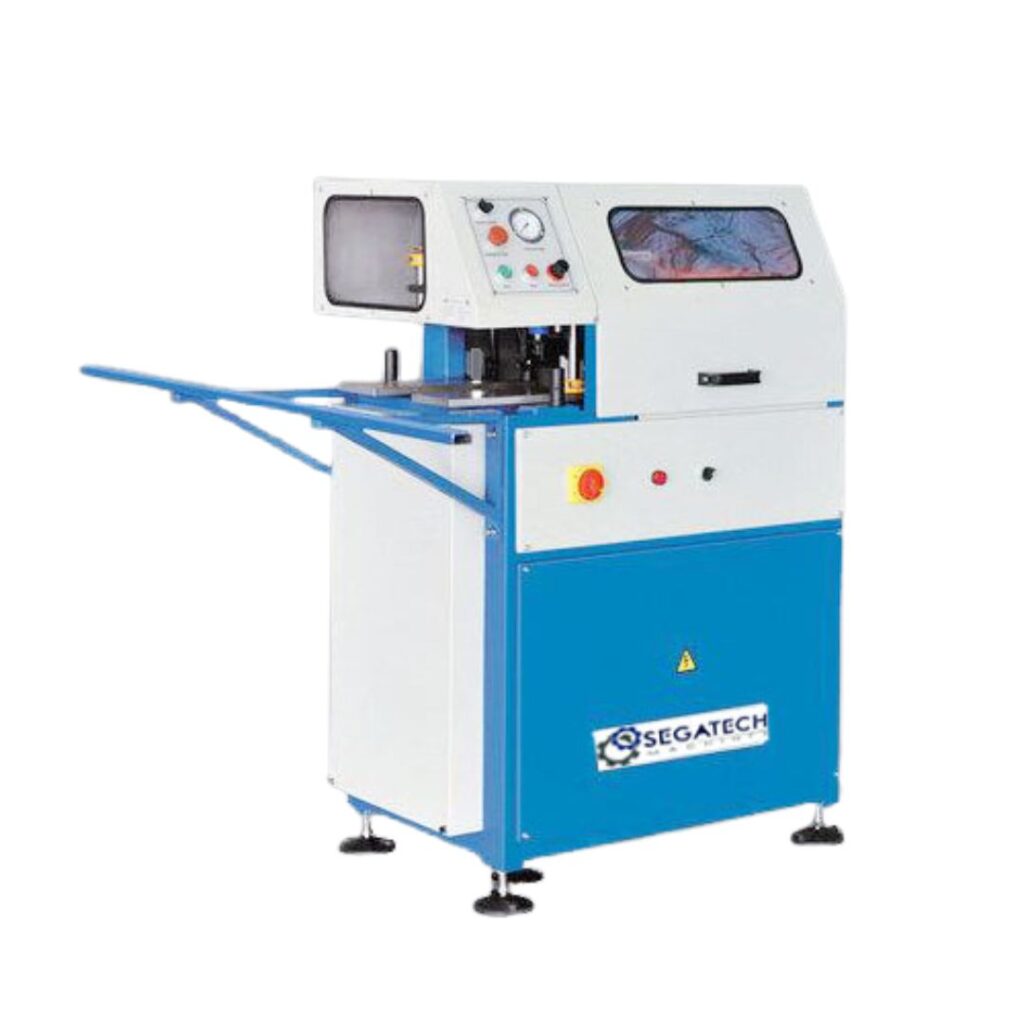

3-5-6T Automatic Corner Cleaning Machine
Main feature
- Special cleaning cutter should be designed for each profile.
- Cutter feeding automatically.
- Within 20 seconds finish one corner complete cleaning.
- Need to change cutters to clean different kinds of profiles
- Simultaneously clean the up & bottom surface and the external corner.
Technical Parameters
| Input Power | 1.5KW< |
| Power supply | 380V/50Hz |
| Motor rotary speed | 2800r/min |
| Air consumption | 100L/min |
| Processing profile height | 20~120mm |
| Processing profile width | 20~120mm |
| Drawing groove width | 3mm |
| Drawing groove depth | 0.3mm |
| Overall dimension | 1650*1300*1450mm |
